Walter Krupp

Walter Krupp isn't just a honing machine manufacturer, but also a sales agent that handles a wide range of Comec machines. The Comec LEV300 and LEV300-L are bore honing machines made for finishing the interior diameters of cylinder blocks.

This page explains the Comec honing machines available from Walter Krupp.

The strengths of Walter Krupp, a honing machine supplier

Walter Krupp is an industrial machinery supplier whose history stretches back over five decades. It carries a wide range of equipment used in engine refurbishing, among them honing machines from Comec.

Walter Krupp doesn't just sell the machines, but also provides consultation, both before and after machine installation. Its website has pages on consultation, project support, spare part ordering, and maintenance, so it has great promise as a provider of ongoing support.

Applications of the honing machines available from Walter Krupp

The bore honing machines available from Walter Krupp are suited for use in worksites that want to maintain consistent quality in their reassembly of modern engines. They're particularly well suited for engine overhauling by factories that work with internal combustion engines, racing engine production, and setting up internal maintenance and repair shops for commercial vehicles.

One of the things that makes these machines so well-suited for these applications is that processing conditions can be manually entered via a touch screen. They support both manual and automated workflows and enable highly reproducible processing.

Device capabilities and manufacturer support requirements vary from business to business, differing for precision components, large components and heavy industry, and component repair and processing.

We have carefully selected the honing machines that are best suited to companies based on the features and challenges of their varied businesses, freeing them from needing to rely on specific operators. Please use the information on this site in your comparisons and deliberations.

Lineup of honing machines available from Walter Krupp

▼Click a product's name to see more detailed information.

Product Name	Features	Processing Range	Main Uses
LEV300	Standard length blocks	Diameter: ⌀2.5 to 500 mm Length: Up to 300 mm	Standard blocks
LEV300-L	Long blocks	Diameter: ⌀2.5 to 500 mm Length: Up to 300 mm	Long blocks

The maximum processing range of 300 mm indicated in the table is the maximum spindle travel distance. This is not synonymous with the maximum processing length, and is provided for reference purposes only.

Processing Range	Diameter: ⌀2.5 to 500 mm Length: Up to 300 mm
Stroke length (mm)	300 mm
Equipment Dimensions	H: 2,160 mm W: 1,020 mm D: 1,560 mm
Automatic Measurement Function	Not indicated on website
Sizing Function	Not indicated on website
Power Specifications	Not indicated on website

For workplaces that want to achieve stable finishes for standard length cylinder blocks

The LEV300 is a dedicated cylinder block machine with a touch screen and an electronic hand wheel. It supports both manual and automated workflows and makes it easy to achieve a high level of work condition reproducibility.

This model is suited for use by internal combustion engine factories and repair factories that primarily work with typical automobiles and standard blocks for small and medium-sized engines.

Processing Range	Diameter: ⌀2.5 to 500 mm Length: Up to 300 mm
Stroke length (mm)	300 mm
Equipment Dimensions	H: 2,160 mm W: 1,020 mm D: 2,060 mm
Automatic Measurement Function	Not indicated on website
Sizing Function	Not indicated on website
Power Specifications	Not indicated on website

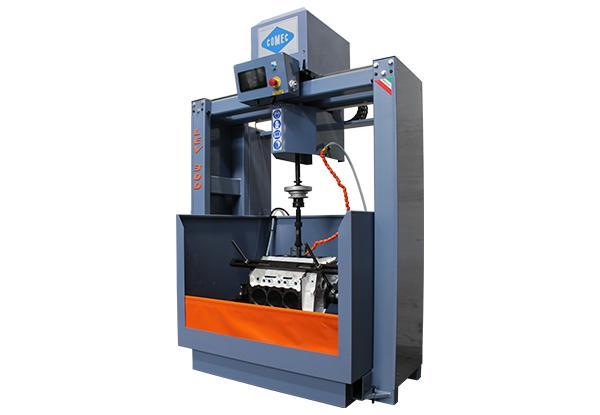

For engine refurbishing factories that want to be able to handle long block dimensions

The LEV300-L has the same basic functions as the standard LEV300 machine, but it is longer, with a total machine length of 500 mm. This longer structure makes it possible to mount and process long cylinder blocks.

This model is well suited for worksites which expect orders for long workpieces that couldn't be handled with the standard model and tuning shops who have their eye on entering the large engine refurbishing business.

Case examples of use of honing machines available from Walter Krupp

The company's website does not present any usage case examples.

Walter Krupp's maintenance system and after-sales support

Clearly indicated contact information and business hours make it easy to know who to contact

Walter Krupp's site has a separate contact page. One of its features is that its consultants are your primary points of contact with the company. When you're considering installing foreign-made machines, knowing exactly who to contact provides tremendous peace of mind.

A spare parts ordering page and a maintenance-related page make the handling process clear

The Walter Krupp website has a spare parts order page; an inspection, maintenance, and calibration page; an incident report page; and a learning and professional development page. On the website, you can see the process to follow in the event of a machine shutdown after installation.

Comec also provides IoT-based remote support for its devices with touch panels, so you can also make use of manufacturer-side support.

Company Profile

Company Name	Walter Krupp GmbH
Head Office Location	Göddertzgarten 38, D-53340 Meckenheim, Germany
Contact in India	Not indicated on website
Website	https://walter-krupp.com/
